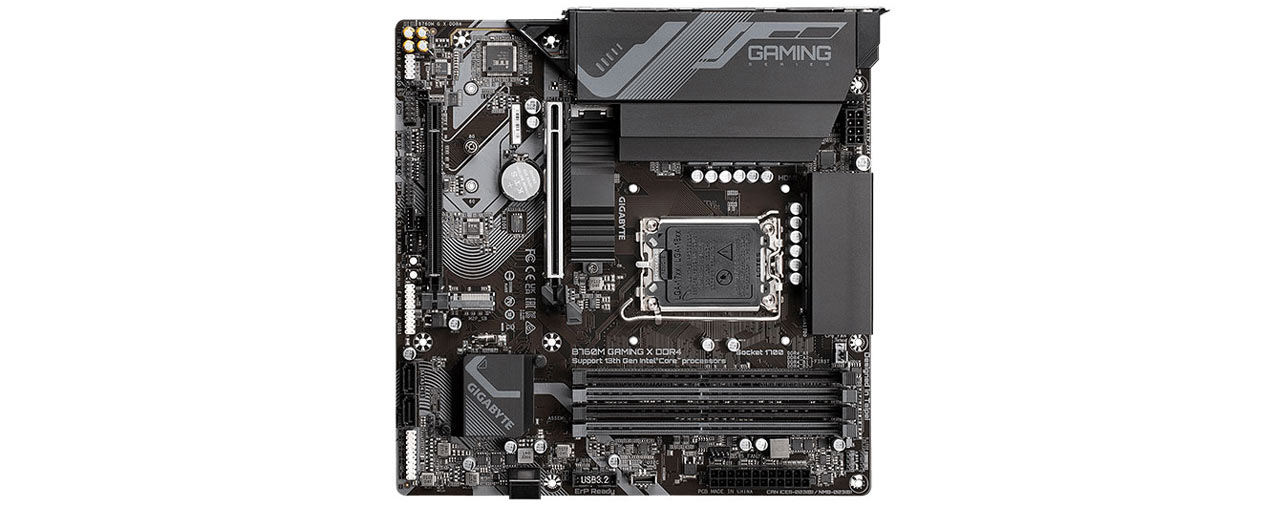

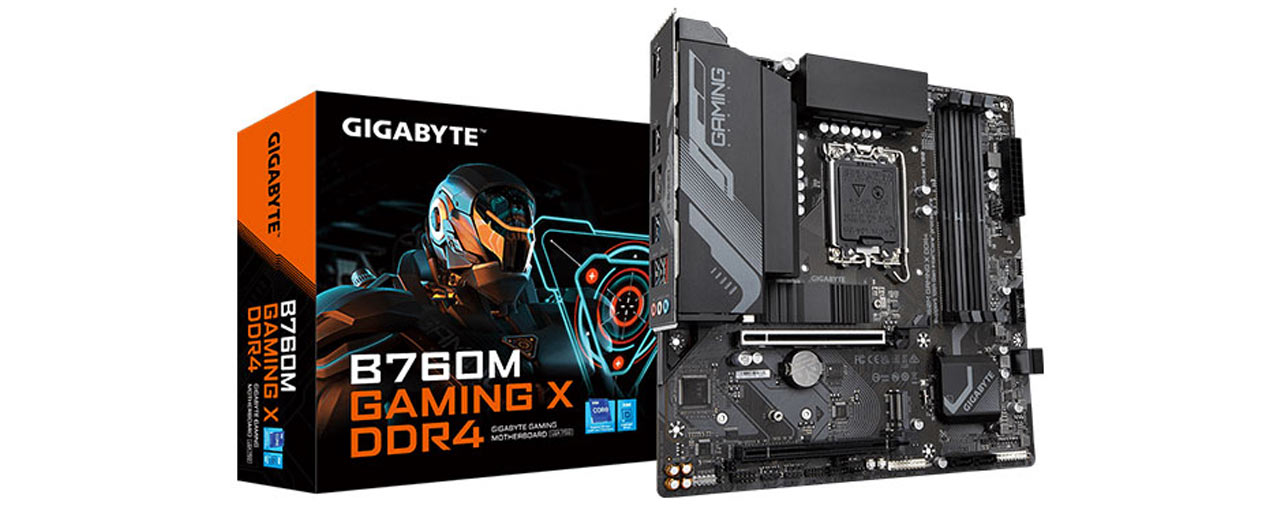

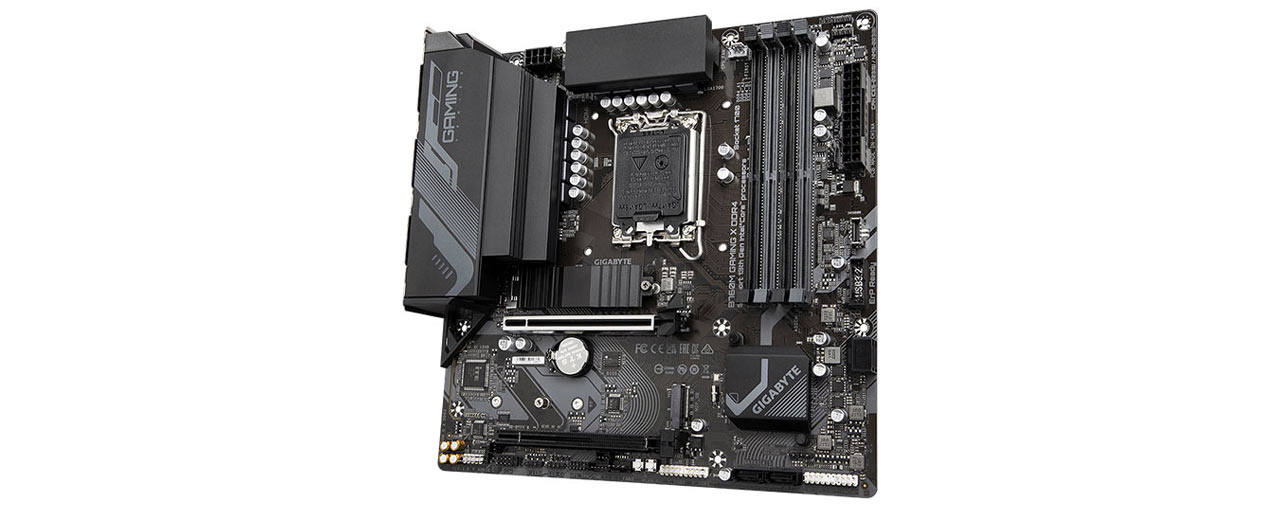

Mainboard Gigabyte B760 GAMING X DDR4 (Intel B760/ Socket 1700/ 4 khe ram/ DDR4/ 2.5 Gigabit LAN)

Name: Mainboard Gigabyte B760 GAMING X DDR4 (Intel B760/ Socket 1700/ 4 khe ram/ DDR4/ 2.5 Gigabit LAN)
Brand: Phucanh
SKU: MAB.GIG.GAB760GAMINGX_DDR4
Price: 4190000 VND
Availability: InStock
Rating: 5 (10 reviews)

Giá niêm yết:	4.700.000 ₫
Giá ưu đãi tháng 4:	4.190.000 ₫ [Giá đã có VAT]

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 2.811 So sánh

Bảo hành

36 Tháng. Hàng chính hãng, bảo hành tại Phúc Anh. Đổi mới 30 ngày

Liên hệ

Đang còn hàng tại cửa hàng:

Cấu hình Mainboard Gigabyte B760 GAMING X DDR4 (Intel B760/ Socket 1700/ 4 khe ram/ DDR4/ 2.5 Gigabit LAN)

Chipset	: Intel B760
Socket	: Intel LGA 1700
Kích thước Main	: ATX
Hỗ trợ CPU	: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processor
Khe cắm RAM	: 4 khe ram
Loại RAM	: DDR4
Bus RAM hỗ trợ	: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
Card đồ họa	: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Thông số (Lan/Wireless)	: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

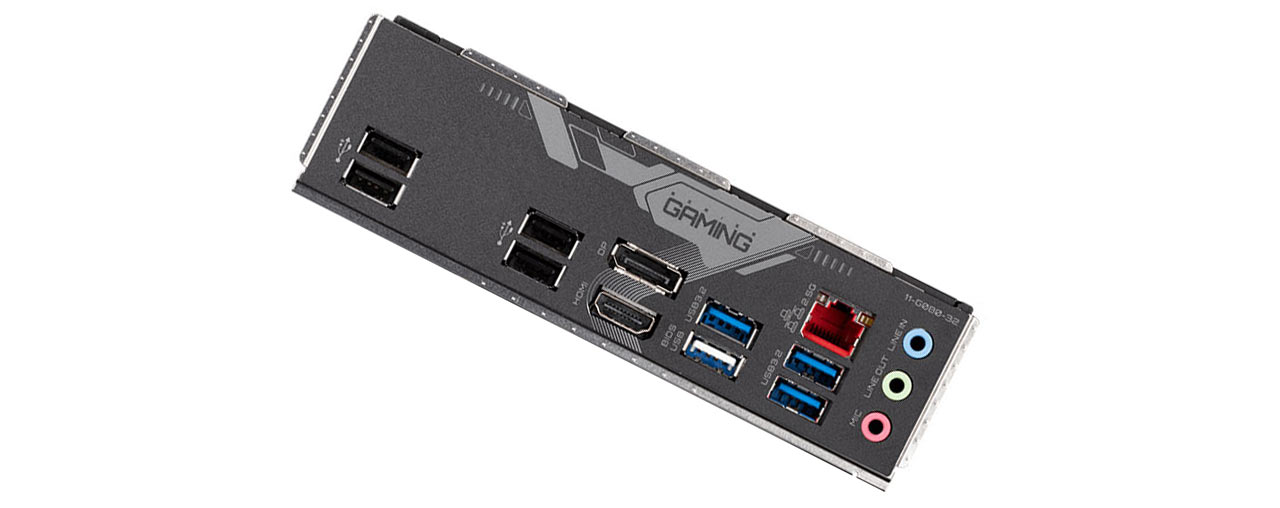

Cổng giao tiếp ngoài	: 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks
Âm thanh	: Realtek® ALC1220-VB CODEC

Xem thêm cấu hình chi tiết

Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Bộ nhớ RAM
Loại RAM	: DDR4
Kết nối
Bus RAM hỗ trợ	: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
Thông số (Lan/Wireless)	: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm trong	: CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Cổng giao tiếp ngoài	: 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks
Thông tin chung
Chipset	: Intel B760
Socket	: Intel LGA 1700
Kích thước Main	: ATX
Hỗ trợ CPU	: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processor
Khe cắm RAM	: 4 khe ram
Card đồ họa	: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Âm thanh	: Realtek® ALC1220-VB CODEC
Mô tả khác	: Đang cập nhật
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...
