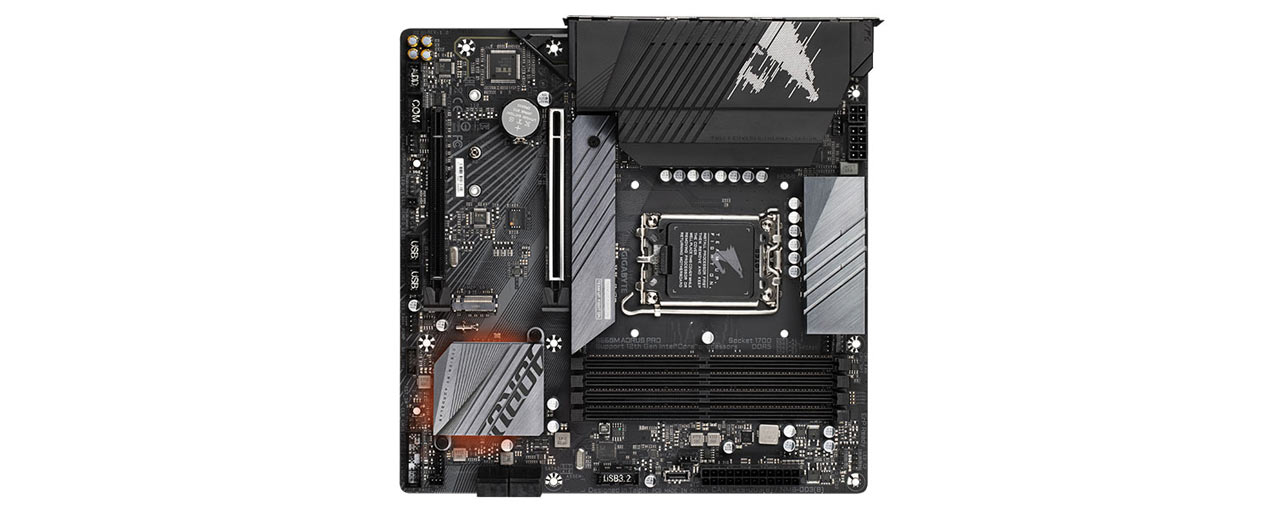

Mainboard Gigabyte B760M AORUS PRO (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Name: Mainboard Gigabyte B760M AORUS PRO (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
Brand: Phucanh
SKU: MAB.GIG.GAB760MAORUSPRO
Price: 4888000 VND
Availability: InStock
Rating: 5 (10 reviews)

Giá niêm yết:	5.400.000 ₫
Giá ưu đãi tháng 4:	4.888.000 ₫ [Giá đã có VAT]

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 2.480 So sánh

Bảo hành

36 Tháng. Hàng chính hãng, bảo hành tại Phúc Anh. Đổi mới 30 ngày

Liên hệ

Đang còn hàng tại cửa hàng:

Cấu hình Mainboard Gigabyte B760M AORUS PRO (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Chipset	: Intel B760
Socket	: Intel LGA 1700
Kích thước Main	: M-ATX
Hỗ trợ CPU	: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	: 4 khe ram
Loại RAM	: DDR5
Bus RAM hỗ trợ	: Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support
Card đồ họa	: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Thông số (Lan/Wireless)	:
Khe cắm trong	: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Khe cắm mở rộng	: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

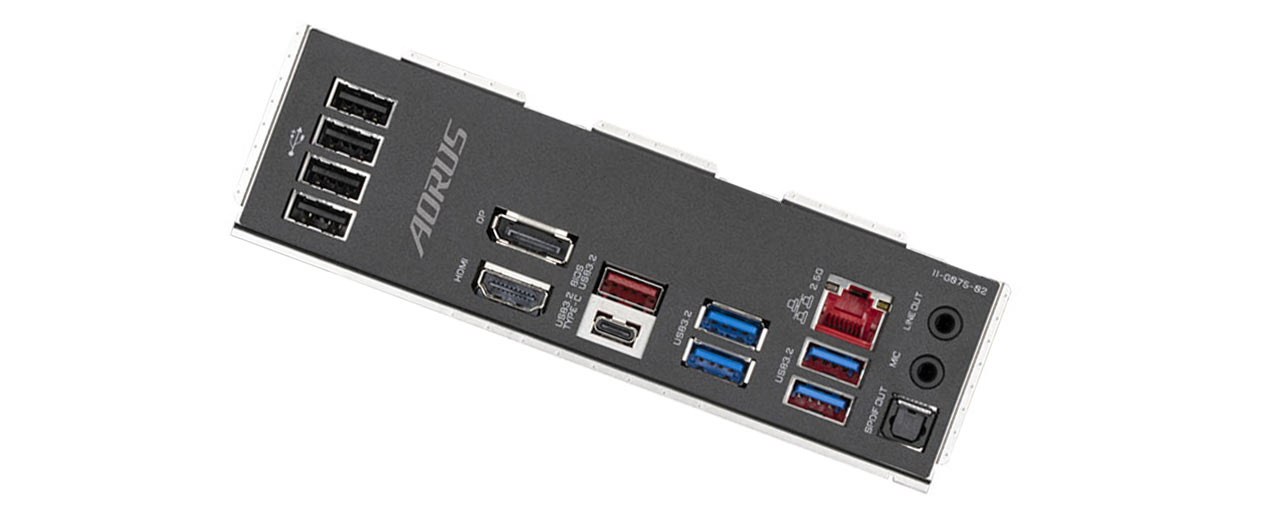

Cổng giao tiếp ngoài	: 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Âm thanh	: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Xem thêm cấu hình chi tiết

Card đồ họa	: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Bộ nhớ RAM
Loại RAM	: DDR5
Kết nối
Bus RAM hỗ trợ	: Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Supp
Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Thông số (Lan/Wireless)	:
Khe cắm trong	: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Khe cắm mở rộng	: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Cổng giao tiếp ngoài	: 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Thông tin chung
Chipset	: Intel B760
Socket	: Intel LGA 1700
Kích thước Main	: M-ATX
Hỗ trợ CPU	: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	: 4 khe ram
Âm thanh	: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...
Mô tả khác	: Đang cập nhật
