Mainboard Gigabyte Z790 AORUS ELITE (Intel Z790/ Socket 1700/ ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Name: Mainboard Gigabyte Z790 AORUS ELITE (Intel Z790/ Socket 1700/ ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
Brand: Phucanh
SKU: MAB.GIG.GAZ790AORUSELITE
Price: 6789000 VND
Availability: InStock
Rating: 5 (10 reviews)

Giá niêm yết:	8.500.000 ₫
Giá ưu đãi tháng 4:	6.789.000 ₫ [Giá đã có VAT]

Giao hàng tận nơi miễn phí theo chính sách vận chuyển (Xem chi tiết)

Lượt xem: 4.321 So sánh

Bảo hành

36 Tháng. Hàng chính hãng, bảo hành tại Phúc Anh. Đổi mới 30 ngày

Liên hệ

Đang còn hàng tại cửa hàng:

Cấu hình Mainboard Gigabyte Z790 AORUS ELITE (Intel Z790/ Socket 1700/ ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Chipset	: Intel Z790
Socket	: Intel LGA 1700
Kích thước Main	: ATX
Hỗ trợ CPU	: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	: 4 khe ram
Bus RAM hỗ trợ	: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Pro
Card đồ họa	: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3
Âm thanh	: Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Khe cắm trong	: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, an
Khe cắm mở rộng	: CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

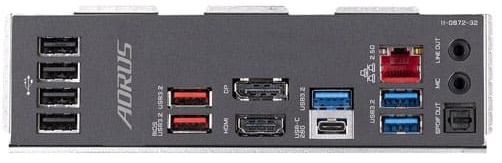

Cổng giao tiếp ngoài	: 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Mô tả khác	: Đang cập nhật

Xem thêm cấu hình chi tiết

Kết nối mạng	: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Bộ nhớ RAM
Loại RAM	: DDR5
Kết nối
Bus RAM hỗ trợ	: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory
Khe cắm trong	: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, an
Khe cắm mở rộng	: CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Cổng giao tiếp ngoài	: 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Thông tin chung
Chipset	: Intel Z790
Socket	: Intel LGA 1700
Kích thước Main	: ATX
Hỗ trợ CPU	: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	: 4 khe ram
Card đồ họa	: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3
Âm thanh	: Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Mô tả khác	: Đang cập nhật
Phụ kiện kèm theo	: Sách, đĩa, cáp SATA, ...

Tới PHÚC ANH an tâm mua sắm những sản phẩm CHÍNH HÃNG – GIAO HÀNG TẬN NƠI

Mainboard Gigabyte Z790 AORUS ELITE (Intel Z790/ Socket 1700/ ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Mainboard Gigabyte Z790 AORUS ELITE DDR5 là linh kiện PC lý tưởng cho những ai muốn xây dựng một hệ thống mạnh mẽ với hiệu năng hàng đầu. Được trang bị chipset Intel Z790 và hỗ trợ DDR5, mainboard mang đến tốc độ xử lý vượt trội cùng khả năng mở rộng linh hoạt, phù hợp cho cả chơi game lẫn công việc sáng tạo nội dung.
